Sobre nosotros Shandong Swan Cotton Industrial Machinery Stock Co.,Ltd.

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. es una empresa cotizada propiedad de Shandong Supply and Marketing Cooperatives. Su predecesor fue fundado en 1946. Recoge la investigación científica y el desarrollo, la producción de precisión, el servicio de comercialización y la operación de capital en un todo, y especialmente proporciona suministro y servicio de una sola parada para equipos mecanizados, inteligentes e informatizados de procesamiento de algodón. Los productos han sido exportados a más de 30 países. La cuota de mercado nacional ocupa el primer lugar durante varios años. La red de servicios de comercialización se extiende por toda la principal área de producción de algodón del mundo.=+Basada en la maquinaria de algodón como negocio principal, la compañía se centra en promover la transformación y actualización de la industria del algodón, crear una nueva era de fábrica inteligente, crear la primera marca de maquinaria de algodón en el mundo, expandirse activamente a la industria de equipos de maquinaria agrícola inteligente y entrar completamente en la industria de fabricación de equipos de gama alta.
🎓
Equipo de clase mundial
Graduados de universidades líderes a nivel mundial
🔬
I+D avanzada
Desarrollado internamente
🤖
Enfoque en innovación
Múltiples tecnologías innovadoras

Nuestros productos

Ver todos los productos → →
cotton ginnning machine

cotton ginnning machine

Modelo: MYZ215-14.8
Parámetros: Designed Output(kg/h) 2000-3000
Equipped Power(Kw) 108.8
No.of Saws(pcs) 215
Spacing between Saws(mm) 14.8
Diameter of Saws(mm) 406
Diameter of Brush Cylinder(mm) 450
Overall Dimensions(LxWxH)(mm) 4720x3688x3558.5
Size of Seedcotton Inlet(LxW)(mm) 3328x320
Size of Lint Outlet(LxW)(mm) 3310x120
Machine Weight(kg) 12000

Cotton Seed Delinting Machine

Cotton Seed Delinting Machine

Modelo: MR-144D
Parámetros: Model :MR-144D
Seedcotton processing capacity(kg/h):
First time 3500-4500
Second time 1000-1500
Third time 750-1000
Saw diameter(mm) Φ320
Power(kw) 24.35
Overall dimension(L*W*H)(mm) 2600X1880X2000
Weight(kg) 2500

grain combine harvester

grain combine harvester

Modelo: 4500 series
Parámetros: Model:4500 series
Harvesting  rows:12
Power of engine KW(HP): 221(300HP）
Working efficiency (h㎡/h): Around 2
Volume of tank (m³): 9
Height of unload (mm): 5100
Weight (kg): 15000
Overall size(L×W×H) (mm): 9500×6100×4300
Type of walk: hydraulic four-wheel drive

Tomato Harvester

Tomato Harvester

Modelo: 4FZ-1.5
Parámetros: Maximum Operation Efficiency(t/h): 80
Rated Power (Kw/hp): 221/296
Working Width(mm): 1500-1900
Walking Method: Full-time hydraulic four-wheel drive
Color Sorter Channel(pcs): 48
Wheel Base(mm): 2750
Highway Turning Radius /m(m): 5.3
Cotton Field Turning Radius /m(m): 4

Rapid Hydraulic Cotton Bale Press

Rapid Hydraulic Cotton Bale Press

Modelo: MDY-400
Parámetros: Main Parameters
Designed Output(Bales/H) 60Bales/hour
Nominal Work Pressure(kn) 4000
Bale Dimensions(mm) 1400*530*700
Bale Weight(kg) 227±10
Compression Height(mm) 485-508
Power(kw) 153
Machine Weight(kg) 45000

Saw Gin

Saw Gin

Modelo: MY158-17
Parámetros: Model MY158-17
Designed output(kg/h) 1100-1800
Equipped power(kw) 64.75
Lint ginning quality Achieved or exceed national standard for ginned cotton of same
Noise 90dB(A)
Pieces of saws(pcs) 158
Diameter of saws(mm) Φ406
Saw spacing(mm) 17
Diameter of brush cylinder(mm) Φ380
Overall dimension(W*L*H)(mm) 3138*4068*3508.5
Machine weight(kg) 8100

Cotton Picker

Cotton Picker

Modelo: 4MZD-3
Parámetros: Number of Picking Head:3
Number of spindle bar:Front 16,back 12
Cotton Module Weight:1400kg
Machine Size (Transport) L x Wx H:11010x3300x3900
Engine Power:424(325HP)
Diesel Oil Tank:600L

Cotton Picker

Cotton Picker

Modelo: 4MZD-6
Parámetros: Engine power:570kw
Machine Size (Transport) L x Wx H:11940x3200x4360
Number of Cotton Picking Head:6
Cotton Module Weight:700-2200kg
Diesel Oil Tank:1400L
Net Weight:30 Ton

Galería de la empresa

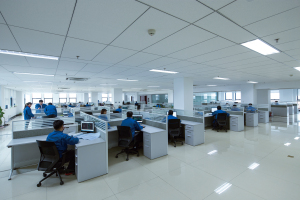

The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue
The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue

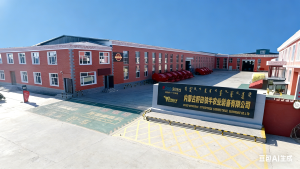

The Inner Mongolia branch is located in Hailar. It covers an area of approximately 53,000 square meters and has around 200 employees
The Inner Mongolia branch is located in Hailar. It covers an area of approximately 53,000 square meters and has around 200 employees

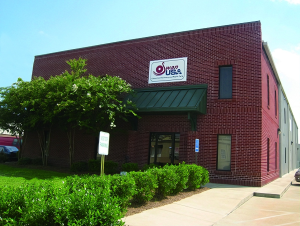

The US branch is located in Montgomery, Alabama
The US branch is located in Montgomery, Alabama
The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue
The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue

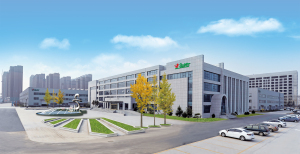

The company's headquarters is located in Jinan
The company's headquarters is located in Jinan

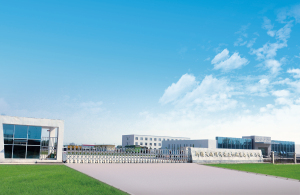

The Xinjiang branch is located in Wujiaqu, Xinjiang. It covers an area of approximately 31,970 square meters and has around 250 employees
The Xinjiang branch is located in Wujiaqu, Xinjiang. It covers an area of approximately 31,970 square meters and has around 250 employees

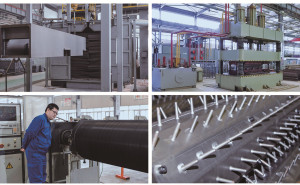

The workshops are equipped with advanced processing, assembly and inspection production lines, enabling large - scale production of a full range of cotton machinery products, from cotton ginning and b
The workshops are equipped with advanced processing, assembly and inspection production lines, enabling large - scale production of a full range of cotton machinery products, from cotton ginning and b
The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue
The core R & D team consists of 106 members. In 2025, the R & D expenditure is approximately $912,287, accounting for 6.78% of the revenue
The company's headquarters is located in Jinan
The company's headquarters is located in Jinan

Certificaciones y premios

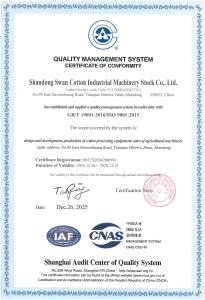

ISO 9001:2015 Quality Management System Certification Certificate
ISO 9001:2015 Quality Management System Certification Certificate

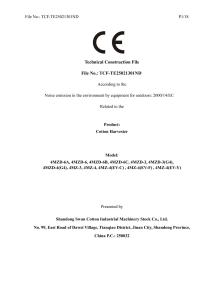

Noise Test Report
Noise Test Report

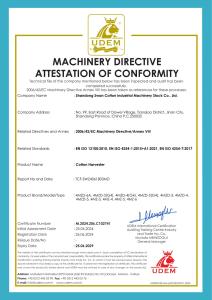

CE
CE

Casos de éxito

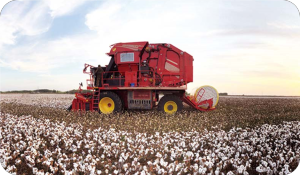

Cotton Picker OEM

Cotton Picker OEM

Less fiber remaining, stable performance, strong adaptability, and a cost - effective choice.
High Cost - Performance, fast picking speed

📍 Ubicación: BR 📦 Quantity: 10 sets

Videos de la empresa y productos

▶

Introducción a la empresa y tour por la fábrica

⏱ Duration: 3:45 | 👁 Views: 15,230

▶

Demostración del producto - Kestrel K-1

⏱ Duration: 5:12 | 👁 Views: 28,450

▶

showcase de innovación tecnológica

⏱ Duration: 4:30 | 👁 Views: 12,890

▶

Testimonios de clientes y casos de éxito

⏱ Duration: 6:20 | 👁 Views: 9,650

¿Listo para transformar su vida?

Contáctenos ahora para saber cómo nuestros productos pueden satisfacer sus necesidades.
