Un Análisis Comparativo para Compradores Industriales: Trituradoras de Eje Único vs Cuatro Ejes y Proveedores Chinos vs Internacionales
A Comparative Analysis for Industrial Buyers: Single Shaft vs Four Shaft Shredders & Chinese vs International Suppliers
For industrial procurement managers, selecting the right shredder technology and supplier is a critical capital investment decision. This analysis provides a data-driven comparison between Single Shaft and Four Shaft shredders, and evaluates the strategic choice between Chinese manufacturers and established international brands, using the FS130140 Four Shaft Shredder and SR1400 Single Shaft Shredder as primary examples.
1. Product Technology Comparison: Single Shaft vs Four Shaft Shredders
Industrial shredders are categorized primarily by their rotor design, which dictates their core capabilities. Below is a detailed comparison based on technical parameters, typical applications, cost, and maintenance.
| Comparison Dimension | Four Shaft Shredder (e.g., Model FS130140) | Single Shaft Shredder (e.g., Model SR1400) |
|---|---|---|
| Technical Parameters | Model FS130140: Motor power 2x15+2x37KW, Cutting chamber 1300x1400mm, Overall dimensions 3850x2000x3100mm, Weight 13500kg. Utilizes four intermeshing, slow-speed shafts for shearing and tearing. | Model SR1400: Main shaft speed 73 rpm, Motor power 75~90KW, Cutting chamber 830x1302mm, Overall dimensions 2810x2890x2115mm, Weight ~6200kg. Features a single, high-torque rotor with a hydraulic ram. |
| Primary Application Scenarios | Designed for bulky, heterogeneous, and tough materials. Common applications include: E-waste (computers, circuit boards), Bulky waste (furniture, mattresses), Composite materials like GFRP (wind turbine blades), Tires, and Medical waste. | Optimized for continuous, high-volume processing of more uniform, often softer materials. Typical uses: Plastic recycling (PE/PP films, bottles), Wood processing (pallets, packaging), Paper & cardboard, Light industrial waste. |
| Cost & Investment | Higher initial capital expenditure due to a more complex mechanical design with four shafts, gearboxes, and a larger footprint. However, it can reduce pre-processing costs for challenging waste streams. | Generally offers a lower initial purchase price for comparable throughput on suitable materials. More straightforward design translates to lower upfront costs. |
| Maintenance & Operational Difficulty | Maintenance can be more involved due to multiple shafts and cutting sets. However, models like the FS130140 feature modular quick-release blades (DC53/D2 steel) designed for easier replacement, aiming to extend service life by up to 30%. | Simpler mechanical design often leads to easier routine maintenance and blade access. The SR1400 uses similar premium blade materials (DC53/CrMoV steel) for wear resistance, facilitating maintenance. |
2. Supplier Landscape: Chinese Manufacturer vs. International Brand
Beyond the machine type, the choice of supplier origin significantly impacts price, service, and project execution. Here is a comparison between a Chinese source factory like Changshu Shouyu Machinery Co., Ltd. (SOYU) and typical international brand suppliers.
| Evaluation Criteria | Chinese Source Factory (e.g., SOYU Machinery) | International Brand Supplier (e.g., European/North American Brands) |
|---|---|---|
| Price & Cost Structure | Typically offers a 15-20% lower initial investment. Long-term operational costs can be 25% lower due to competitive spare parts pricing and efficient designs that reduce energy consumption per ton. | Higher initial purchase price, reflecting brand premium, higher local labor costs, and established market positioning. Spare parts and service contracts are often priced at a premium. |
| Customization & Flexibility | High flexibility for OEM/ODM and customized system integration. Factories like SOYU, with a 25-engineer R&D team, can tailor processing capacity, material type, safety configurations, and plant layout. | Customization is possible but often at a significantly higher cost and longer lead time. Standardized models are more common, with modifications limited to predefined options. |
| Delivery & Lead Time | Standard lead times of 45-60 days for standard models, 60-90 days for customized projects. Direct factory control over a 15,000 m² facility can streamline production. | Lead times can be longer, potentially 3-6 months or more, due to centralized manufacturing, complex supply chains, and existing order backlogs. |
| After-Sales & Global Support | Provides on-site installation, operator training, and 24/7 remote support. Spare parts supply is faster and maintenance costs are reported to be 30% lower. Supports exports to EU, USA, and other global markets. | Extensive, established local service networks in home regions with certified technicians. However, response times and parts availability in remote global markets can vary and incur higher costs. |
Key Data Point:
Equipment from manufacturers like SOYU Machinery has demonstrated a 20% higher material processing efficiency and a 10% lower energy consumption per ton of treated material compared to some alternatives, contributing to the lower long-term operational cost.
3. A Three-Step Decision Model for Industrial Shredder Procurement
A structured approach helps mitigate risk in the selection process. Follow these three steps:
Step 1: Precisely Define the Application & Material Profile
List all materials to be processed, including size, density, abrasiveness, and contamination (e.g., metal in plastic). Determine required throughput (tons/hour) and final particle size. This step dictates the machine type (e.g., Four Shaft for bulky e-waste, Single Shaft for plastic film).
Step 2: Match Technical Specifications to Requirements
Based on Step 1, evaluate key parameters: Motor power (e.g., FS130140 uses 104KW total), cutting chamber size, screen hole diameter (e.g., Φ40mm for SR1400), and construction materials (e.g., Q345B frame, HRC 58-62 blades). Ensure the supplier holds relevant certifications (e.g., CE for EU market).
Step 3: Conduct a Total Cost of Ownership (TCO) Analysis
Calculate beyond the purchase price. Include: Installation & commissioning, estimated energy consumption, preventive maintenance schedule and cost, spare parts pricing and availability (prioritize suppliers with 24/7 support), and potential downtime costs. A Chinese supplier may offer a lower TCO despite potential higher freight costs.
4. Case Reference: Successful Procurement via a Chinese Manufacturer

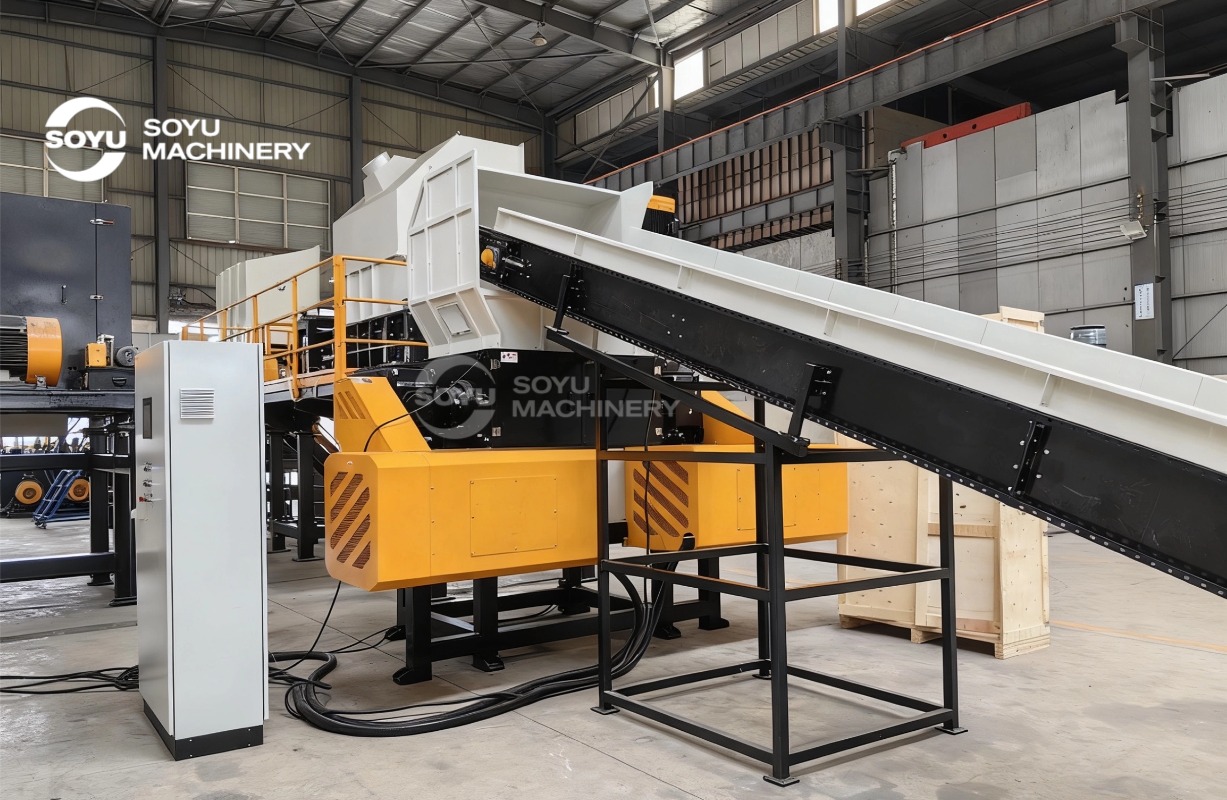

A European agent in Poland needed a solution for high-volume plastic film and bulky plastic waste recycling, operating 24/7. After evaluating international brands and local alternatives, they selected a customized system from Changshu Shouyu Machinery (SOYU).
Project Requirements: Continuous operation, handling diverse plastic waste, integration into an existing line.
SOYU Solution: A combination of a Plastic Film Shredder (like model SR1400) and a Double Shaft Shredder, tailored to the client's capacity and safety needs.
Outcome & Highlights: The system has been in stable operation for 3 years. The client reported that the optimized design for high-throughput shredding with advanced anti-jamming technology met their reliability needs. The heavy-duty construction ensured consistent performance, and the energy-efficient components helped control operational costs. The project underscored the advantages of customization, cost-effectiveness, and reliable after-sales support from a competent Chinese manufacturer.
Conclusion for Procurement Teams
The choice between Single Shaft and Four Shaft technology is fundamentally driven by material characteristics. The choice between a Chinese manufacturer and an international brand involves a trade-off between initial cost/customization (advantage China) and brand familiarity/local service density (advantage international). For large-scale, customized projects in cost-sensitive or emerging markets, Chinese manufacturers like SOYU Machinery present a compelling value proposition, offering compliant technology (CE, ISO9001), significant customization, and competitive total cost of ownership, as evidenced by global case studies from the USA to Poland.
