Product introduction

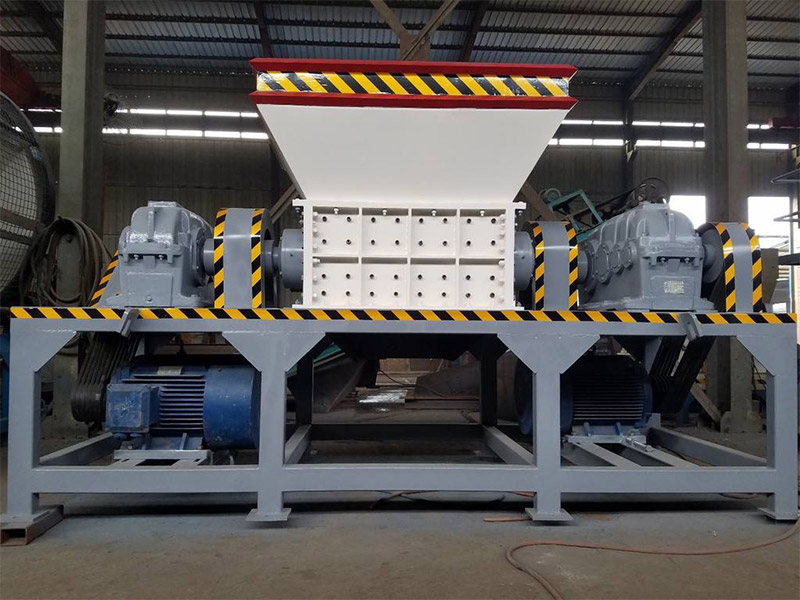

Metal bucket shredder will be all kinds of waste tricycles, waste bicycles, waste cars, car shells, waste iron sheets, waste steel sheets, waste steel bars, cans, metal bottles, paint buckets, waste thin iron sheets, waste iron filings, cans, and other waste metal broken into pellets, thereby reducing transportation costs, and improve the speed of iron smelting.
Scope of application
When the metal shredder is working, the material can be fully and effectively crushed in the crushing chamber, with high output, low energy consumption, high efficiency and uniform discharge. And in the use of the equipment, low noise, no pollution, simple operation, easy maintenance. This machine is used for the crushing of pig iron powder, alloy, ferrosilicon powder, bottle caps, cans, circuit boards, waste mobile phone batteries and other fragile metal materials. Application: iron powder, ferromanganese powder, aluminum powder, zinc powder, ferrosilicon powder, all metals can be crushed. High quality and low price, welcome to order.
Characteristics and technical advantages
1. Deceleration motor drive.
2. Mesh blade, will be completely broken cans.
3. Select special blade, blade hardness is not less than HRC55(HRC hardness of file is 51 degrees)
4. Strong structure, dense reinforcement plate, to ensure the strength of the box.
5. Automatic button control, safe and convenient.
6. Safety label and safety label to ensure safe use.
7. Can be equipped with conveyor belt feeding.
Metal shredder use and maintenance instructions:
Before the test start, it is necessary to strictly check whether the installation of all parts of the machine meets the requirements, whether the screws and bolts are loose, and whether the belt can be gently pulled by hand to test it, and whether there is any phenomenon such as touching the shell. At the same time check the direction of rotation, it is strictly prohibited to crush flammable and explosive items, so as to avoid accidents.
2 In the production, the material should be kept uniform to ensure the crushing quality and normal production, and the motor overload is strictly prohibited to ensure the normal operation of the machine.
3 In addition to often pay attention to check the tightening and loosening of various parts, but also should pay attention to check the wear of wearing parts, such as serious wear should be replaced in time to avoid damage to the main parts. And take necessary fire prevention measures.
4 Due to the high speed, in addition to the correct and firm installation, good lubrication should be maintained to maintain the normal operation of the machine. Under normal circumstances, the bearing temperature does not exceed 70 degrees. The main engine bearing is added once a week with butter and molybdenum disulfide, and the high-speed butter effect is better.
Technical parameter
| Model | Size(mm) | Size of crushing chamber(mm) | Blade diameter(mm) | blade thickness(mm) | Number of blades | Power(kw) | Weight(kg) |
|---|
| SZ-500 | 2800×1300×1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
| SZ-800 | 3000×1300×1850 | 800×480 | 200 | 20 | 40 | 15×2 | 2500 |
| SZ-1000 | 3300×1900×2200 | 1000×690 | 300 | 40 | 24 | 22×2 | 5200 |
| SZ-1200 | 3600×2000×2200 | 1200×690 | 300 | 40 | 30 | 30×2 | 6400 |
| SZ-1500 | 4180×2100×2400 | 1500×850 | 550 | 50/75 | 30/20 | 37×2 | 9000 |
| SZ-1800 | 5800×2400×3300 | 1800×1206 | 550 | 50/75 | 36/24 | 55×2 | 13600 |
| SZ-2000 | 6400×2700×3500 | 2000×1490 | 600 | 50/75 | 40/26 | 75×2 | 20100 |
| SZ-2500 | 7500×3200×3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
| SZ-3000 | 8600×3500×4000 | 3000×1800 | 600 | 75/100 | 40/30 | 160×2 | 31000 |
| Note: 1. The number, diameter and thickness of blade claws can be customized according to material type and discharge size; 2. Different types of materials and discharge sizes, equipment output will be different. |
|
|
|
|
|
|
|
