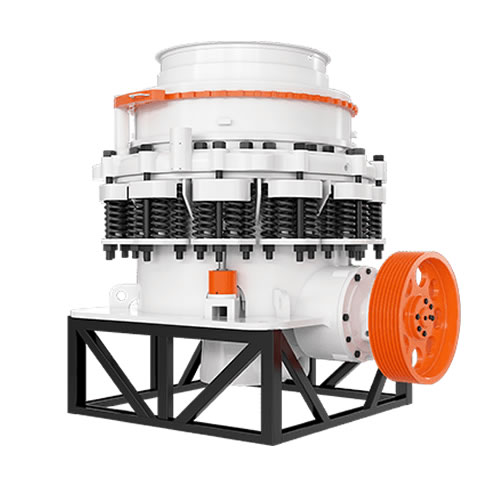

FEATURES AND TECHNOLOGY ADVANTAGES OF SYMONS CONE CRUSHER
Reasonable structure, advanced crushing principle and technical parameters, reliable operation and low running costs.
With large crushing force, high production efficiency and high yield.
Spring safety system is reliable and can provide safe and effective overload protection.
Two kinds of crushing chamber structure to adapt to a wide range of product size requirements.
Manual hydraulic adjustment discharge opening, easy effort.
WORKING PRINCIPLE OF SPRING CONE CRUSHER
Motor drives eccentric sleeve rotation through belt work, drive shaft, bevel gear pair, moving cone to do in the role of eccentric sleeve the spin pendulum movement movable cone and fixed cone sometimes near sometimes deviate from. Materials continue to be squeezed in the crushing cavity, the impact is broken, broken material discharged from the lower. It is widely used in metallurgical industry, hydro-dam construction, transportation, chemical industry, and building materials. It is suitable for crushing all sorts of rocks which is hard and medium hard.
Technical Data of Symons Cone Crusher:
| Model | Cavity | Minimum discharge mouth(mm) | Max feed size(mm) | Motor Power (KW) | Capacity (t/h) —— open circuit, closed discharge(mm) |
|
|
|
|
|
|
|
|
|
|
|
| 3 | 5 | 6 | 10 | 13 | 16 | 19 | 25 | 31 | 38 | 52 | 64 |
|
|
|
|
|
| SDY900D | Fine | 3 | 35 | 75 | 27 | 41 | 55 | 68 | 91 |
|
|
|
|
|
|
|
| Coarse | 3 | 51 | 75 | 27 | 41 | 55 | 68 | 91 | 100 |
|
|
|
|
|
|
|
| Extra Coarse | 6 | 65 | 75 |
|
| 59 | 73 | 95 | 114 | 127 |
|
|
|
|
|
|
| SDY1300D | Fine | 3 | 55 | 200 | 36 | 59 | 82 | 105 | 137 | 164 |
|
|
|
|
|
|
| Medium | 6 | 76 | 200 |
|
| 82 | 105 | 137 | 164 |
|
|
|
|
|
|
|
| Coarse | 8 | 90 | 200 |
|
|
| 109 | 159 | 182 | 200 | 228 |
|
|
|
|
|
| Extra Coarse | 16 | 115 | 200 |
|
|
|
|
|
| 209 | 237 |
|
|
|
|
|
| SDY1700D | Fine | 5 | 60 | 250 |
| 91 | 137 | 164 | 209 |
|
|
|
|
|
|
|
| Medium | 6 | 76 | 250 |
|
| 137 | 164 | 209 | 255 | 282 |
|
|
|
|
|
|
| Coarse | 10 | 115 | 250 |
|
|
| 191 | 255 | 282 | 309 | 337 |
|
|
|
|
|
| Extra Coarse | 13 | 115 | 250 |
|
|
|
| 225 | 282 | 309 | 337 |
|
|
|
|
|
| SDY2100D | Fine | 5 | 90 | 400 |
| 190 | 270 | 345 | 360 | 408 | 475 | 512 |
|
|
|
|
| Medium | 10 | 110 | 400 |
|
|
| 354 | 408 | 454 | 508 | 560 | 613 |
|
|
|
|
| Coarse | 13 | 150 | 400 |
|
|
|
| 454 | 480 | 540 | 599 | 685 |
|
|
|
|
| Extra Coarse | 16 | 170 | 400 |
|
|
|
|
| 508 | 590 | 653 | 693 | 720 |
|
|
|
